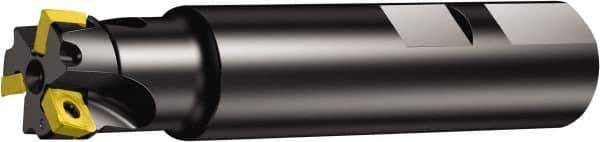

Sandvik Coromant - 2 Inserts, 20mm Cut Diam, 16mm Arbor Diam, 5.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 74mm High, 490R-08T308 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 49542764
Brand: Sandvik Coromant
Model #: 5761963
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (mm) | 74.00 |
| Overall Height (Decimal Inch) | 2.9134 |
| Insert Compatibility | 490R-08T308 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | 490..Bxx |
| Maximum RPM | 48500 |
| ISO Number | 490-020B16-08L |
| Complete Insert Compatibility | 490R-08T308 |
| Toolholder Material | Steel |
