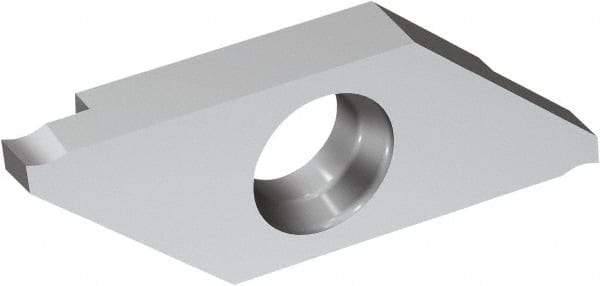

Sandvik Coromant - 3RMAGR MAG Grade H13A, 0.5mm Cutting Width Carbide Grooving Insert - 0.0512" Max Depth of Cut, Right Hand, Uncoated
Item #: 49547938
Brand: Sandvik Coromant
Model #: 5735432
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MAGR |
| Insert Size | 3R |
| Material | Carbide |
| Cutting Width (mm) | 0.50 |
| Cutting Width (Decimal Inch) | 0.0197 |
| Maximum Depth of Cut (Decimal Inch) | 0.0512 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 3.17 |
| Cutting Height (Decimal Inch) | 0.1250 |
| Relief Angle | 6 |
| Insert Seat Size | 3 |
| Chipbreaker | MAG |
| Overall Length (mm) | 12.02 |
| Overall Length (Decimal Inch) | 0.4732 |
| Series | CoroCut XS |
| ISO Number | MAGR 3 050 H13A |
| Insert Thickness (Decimal Inch) | 0.1250 |
