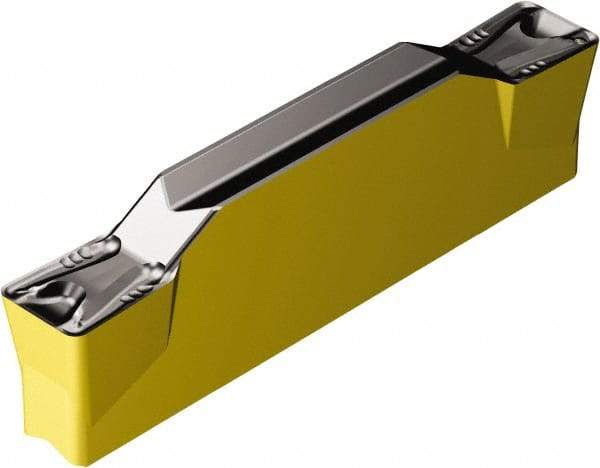

Sandvik Coromant - 208N123 TM Grade 4325, 8mm Cutting Width Carbide Grooving Insert - 27.6mm Max Depth of Cut, Neutral, 1.2mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 49548308
Brand: Sandvik Coromant
Model #: 6532136
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 208 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (mm) | 27.60 |
| Maximum Depth of Cut (Decimal Inch) | 1.0866 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | TM |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Coating Process | CVD |
| Series | CoroCut 1-2 |
| ISO Number | N123L2-0800-0012-TM 4325 |
