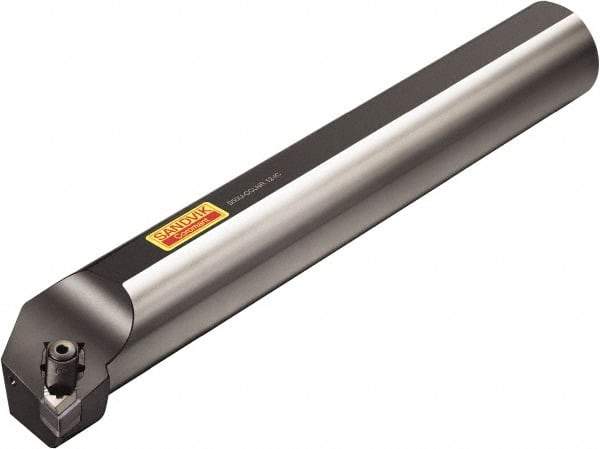

Sandvik Coromant - 70mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, S..CCLNR/L Indexable Boring Bar - CNG 452, CNGN 12 07 08 Insert
Item #: 49615628
Brand: Sandvik Coromant
Model #: 5751952
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S..CCLNR/L |
| Series | T-Max |
| Minimum Bore Diameter (mm) | 70.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.7559 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | CNG 452; CNGN 12 07 08 |
| Through Coolant | No |
| Rake | Negative |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Rake Angle | -6 |
| Complete Insert Compatibility | CNG 452; CNGN 12 07 08 |
| Toolholder Material | Steel |
