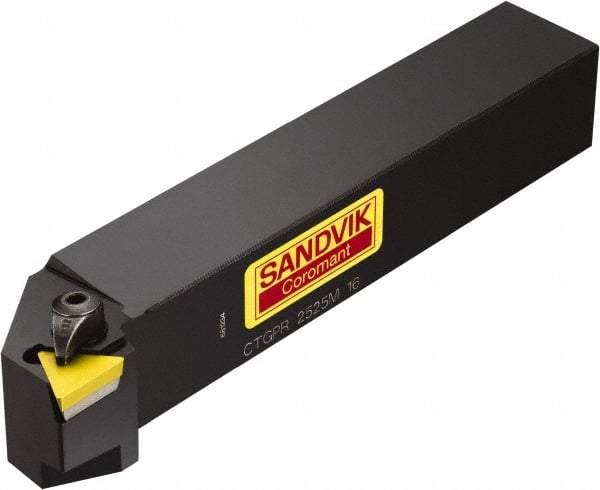

Sandvik Coromant - CTGPR/L, Right Hand Cut, -1° Lead Angle, 10mm Shank Height x 10mm Shank Width, Positive Rake Indexable Turning Toolholder - 70mm OAL, TPMR 09 02 04, TPMR 1.8(1.5)1 Insert Compatibility, Series T-Max S
Item #: 49617624
Brand: Sandvik Coromant
Model #: 5726229
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CTGPR/L |
| Rake | Positive |
| Series | T-Max S |
| Lead Angle | -1 |
| Shank Width (mm) | 10.00 |
| Shank Width (Decimal Inch) | 0.3937 |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Insert Compatibility | TPMR 09 02 04; TPMR 1.8(1.5)1 |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Center to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 15.00 |
| Head Length (Decimal Inch) | 0.5906 |
| Toolholder Material | Steel |
