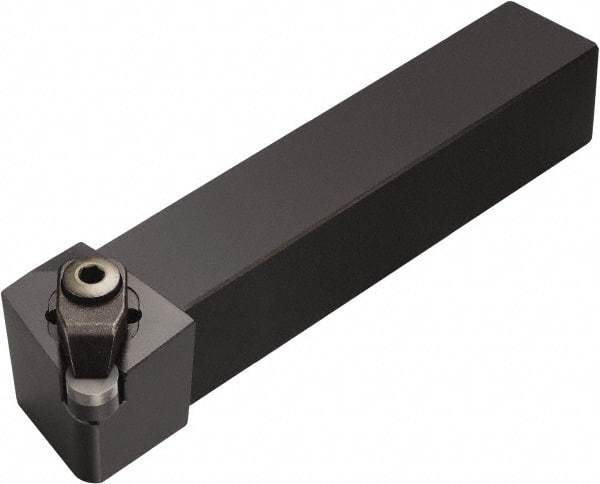

Sandvik Coromant - CRSNR/L, Right Hand Cut, 50mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 300mm OAL, RNGN 25 07 00, RNG 85 Insert Compatibility, Series T-Max
Item #: 49617897
Brand: Sandvik Coromant
Model #: 5725926
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CRSNR/L |
| Rake | Negative |
| Series | T-Max |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | RNGN 25 07 00; RNG 85 |
| Insert Holding Method | Top Clamping |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (Decimal Inch) | 1.9685 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Toolholder Material | Steel |
