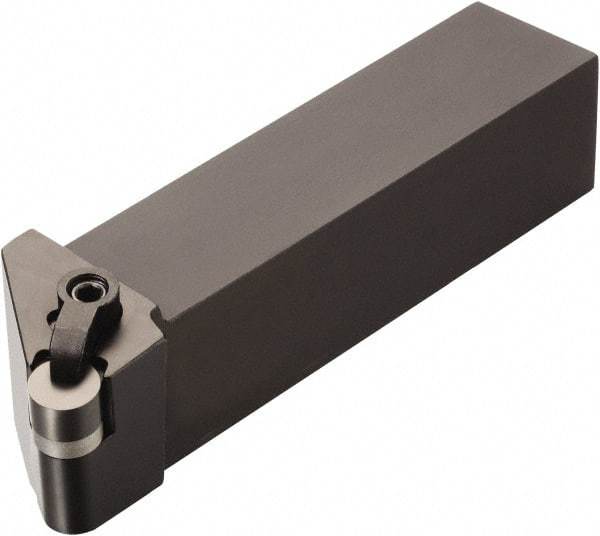

Sandvik Coromant - CRGNR/L, Right Hand Cut, 31.75mm Shank Height x 31.75mm Shank Width, Negative Rake Indexable Turning Toolholder - 152.4mm OAL, RNGN 12 07 00, RNG 45 Insert Compatibility, Series T-Max
Item #: 49617921
Brand: Sandvik Coromant
Model #: 5726161
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CRGNR/L |
| Rake | Negative |
| Series | T-Max |
| Shank Width (mm) | 31.75 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | RNGN 12 07 00; RNG 45 |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (mm) | 31.75 |
| Head Length (Decimal Inch) | 1.2500 |
| Toolholder Material | Steel |
