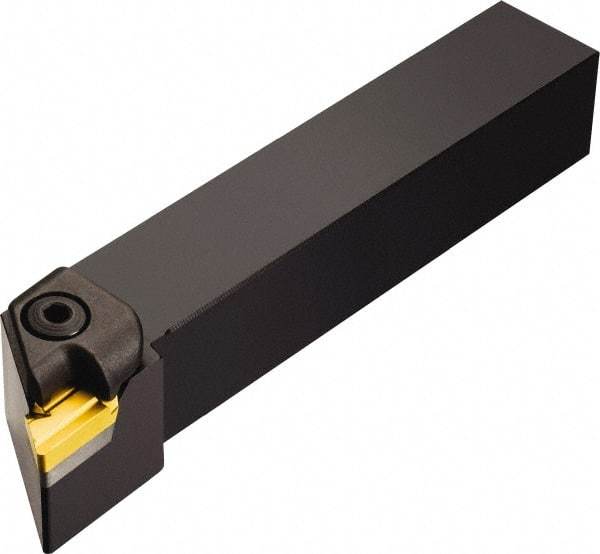

Sandvik Coromant - CKJNR/L, Right Hand Cut, -3° Lead Angle, 31.75mm Shank Height x 31.75mm Shank Width, Negative Rake Indexable Turning Toolholder - 152.4mm OAL, KNUX 16 04 05R Insert Compatibility, Series T-Max
Item #: 49617947
Brand: Sandvik Coromant
Model #: 5725301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CKJNR/L |
| Rake | Negative |
| Series | T-Max |
| Lead Angle | -3 |
| Shank Width (mm) | 31.75 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | KNUX 16 04 05R |
| Insert Holding Method | Top Clamping |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Toolholder Material | Steel |
