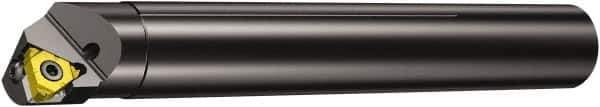

Sandvik Coromant - Left Hand Cut, 20mm Shank Width x 20mm Shank Height Indexable Threading Toolholder - 140mm OAL, 266.LL-16.. Insert Compatibility, 266R/LKF-R Toolholder, Series CoroThread 266
Item #: 49623648
Brand: Sandvik Coromant
Model #: 5757694
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Overall Length (mm) | 140.00 |
| Insert Compatibility | 266.LL-16.. |
| Series | CoroThread 266 |
| Toolholder Style | 266R/LKF-R |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 14.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5512 |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Toolholder Material | Steel |
