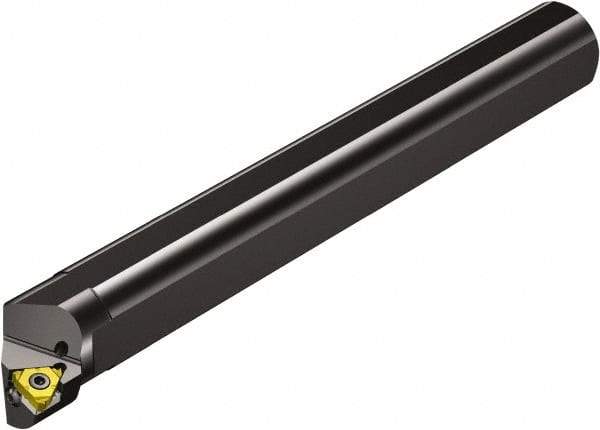

Sandvik Coromant - Left Hand Cut, 40mm Shank Width x 37mm Shank Height Indexable Threading Toolholder - 300mm OAL, 266.LL-16.. Insert Compatibility, 266R/LKF Toolholder, Series CoroThread 266
Item #: 49624117
Brand: Sandvik Coromant
Model #: 5757865
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Height (mm) | 37.00 |
| Shank Height (Decimal Inch) | 1.4567 |
| Overall Length (Decimal Inch) | 11.8110 |
| Overall Length (mm) | 300.00 |
| Insert Compatibility | 266.LL-16.. |
| Series | CoroThread 266 |
| Toolholder Style | 266R/LKF |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 27.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0630 |
| Head Length (mm) | 120.00 |
| Head Length (Decimal Inch) | 4.7244 |
| Toolholder Material | Steel |
