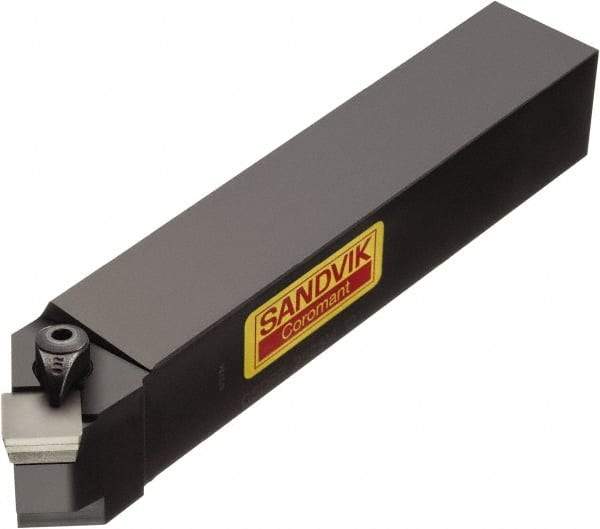

Sandvik Coromant - CSDPR/L, Left Hand Cut, 45° Lead Angle, 25mm Shank Height x 25mm Shank Width, Positive Rake Indexable Turning Toolholder - 150.02mm OAL, SPUN 12 03 08, SPU 422 Insert Compatibility, Series T-Max S
Item #: 49651946
Brand: Sandvik Coromant
Model #: 5726004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | CSDPR/L |
| Rake | Positive |
| Series | T-Max S |
| Lead Angle | 45 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.02 |
| Overall Length (Decimal Inch) | 5.9063 |
| Insert Compatibility | SPUN 12 03 08; SPU 422 |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 141.70 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.5787 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Head Length (mm) | 18.68 |
| Head Length (Decimal Inch) | 0.7354 |
| Toolholder Material | Steel |
