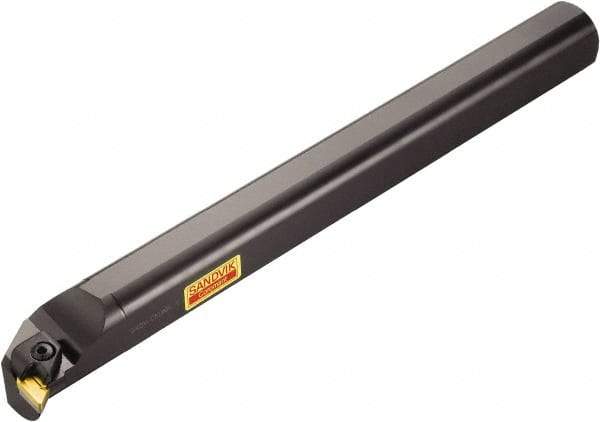

Sandvik Coromant - 48mm Min Bore Diam, 400mm OAL, 40mm Shank Diam, S..CKUNR/L Indexable Boring Bar - KNUX 16 04 05R Insert
Item #: 49652779
Brand: Sandvik Coromant
Model #: 5751917
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S..CKUNR/L |
| Series | T-Max |
| Minimum Bore Diameter (mm) | 48.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.8898 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 400.00 |
| Overall Length (Decimal Inch) | 15.7480 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | KNUX 16 04 05R |
| Through Coolant | No |
| Rake | Negative |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | -3 |
| Back of Bar to Cutting Edge (mm) | 400.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 15.7480 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Rake Angle | -6 |
| Complete Insert Compatibility | KNUX 16 04 05R |
| Toolholder Material | Steel |
