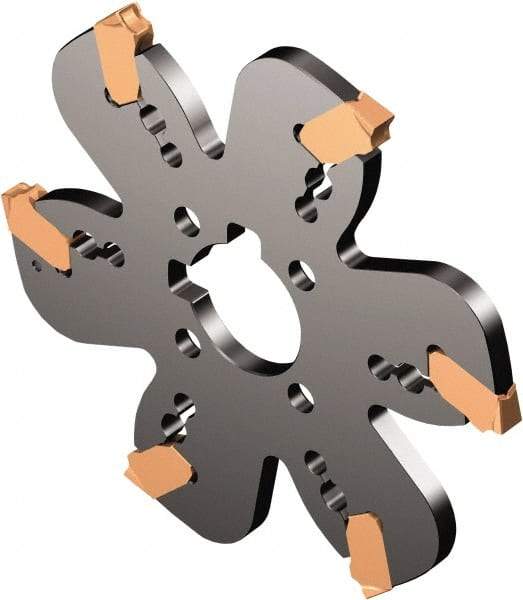

Sandvik Coromant - 0.2362" Cutting Width, 4-5/8" Depth of Cut, 315mm Cutter Diam, 1.5748" Hole Diam, Indexable Slotting Cutter - 1.5748" Shank Diam, QD..X Toolholder, Right Hand Cutting Direction
Item #: 49662315
Brand: Sandvik Coromant
Model #: 6657533
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Cutting Width (Decimal Inch) | 0.23622 |
| Cutting Width (mm) | 6 |
| Maximum Depth of Cut (mm) | 117.50 |
| Maximum Depth of Cut (Decimal Inch) | 4.6260 |
| Maximum Depth of Cut (Decimal Inch) | 4.626 |
| Maximum Depth of Cut (mm) | 117.5 |
| Cutter Diameter (mm) | 315.00 |
| Cutter Diameter (Decimal Inch) | 12.4016 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Inch) | 1.5748 |
| Modular Connection Size | X40 |
| Toolholder Style | QD..X |
| Series | CoroMill QD |
| Number of Cutter Inserts | 24 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 2200 |
| Maximum RPM | 2200 |
| Through Coolant | No |
| Complete Insert Compatibility1 | QD-NK-0600-035E-PM |
| Overall Height (mm) | 5.65 |
| Overall Height (Decimal Inch) | 0.2224 |
