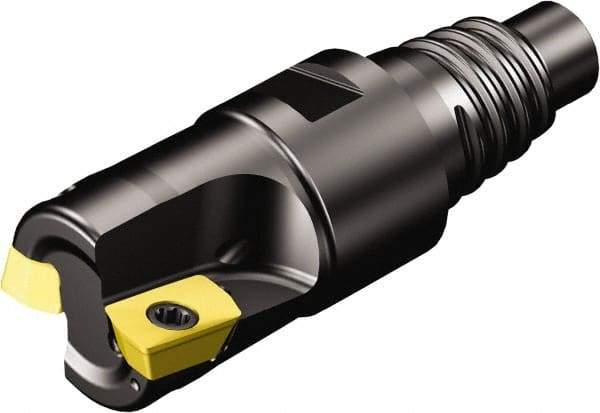

Sandvik Coromant - 5 Inserts, 25mm Cut Diam, 24.2mm Arbor Diam, 5.8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 49mm High, 390R-07.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 49665276
Brand: Sandvik Coromant
Model #: 6851113
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Arbor Hole Diameter (mm) | 24.20 |
| Arbor Hole Diameter (Decimal Inch) | 0.9528 |
| Overall Height (mm) | 49.00 |
| Overall Height (Decimal Inch) | 1.9291 |
| Insert Compatibility | 390R-07.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | R390..EH..-07 |
| Maximum Body Diameter (Decimal Inch) | 0.9449 |
| Maximum RPM | 28200 |
| ISO Number | R390-025EH25-07M |
| Complete Insert Compatibility | 390R-07.. |
| Toolholder Material | Steel |
