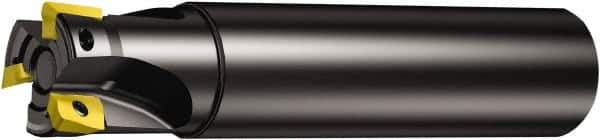

Sandvik Coromant - 3 Inserts, 14mm Cut Diam, 14mm Arbor Diam, 5.8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 80mm High, 390R-07.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 49686652
Brand: Sandvik Coromant
Model #: 6851096
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 14.00 |
| Cutting Diameter (Decimal Inch) | 0.5512 |
| Arbor Hole Diameter (mm) | 14.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.5512 |
| Overall Height (mm) | 80.00 |
| Overall Height (Decimal Inch) | 3.1496 |
| Insert Compatibility | 390R-07.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Axx..-07 |
| Maximum Body Diameter (Decimal Inch) | 0.5197 |
| Maximum RPM | 41400 |
| ISO Number | R390-014A14-07M |
| Complete Insert Compatibility | 390R-07.. |
| Toolholder Material | Steel |
