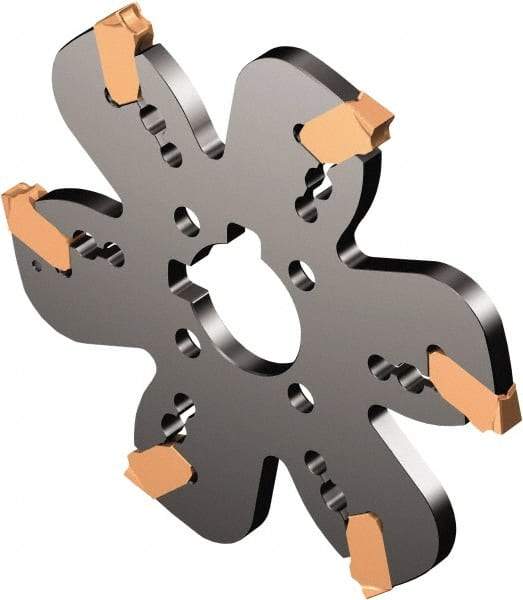

Sandvik Coromant - 0.0941" Cutting Width, 1.2598" Depth of Cut, 127mm Cutter Diam, 1-1/4" Hole Diam, Indexable Slotting Cutter - 1-1/4" Shank Diam, AQD..Y Toolholder, Right Hand Cutting Direction
Item #: 49686777
Brand: Sandvik Coromant
Model #: 6657552
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Cutting Width (mm) | 2.39 |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 32 |
| Cutter Diameter (mm) | 127.00 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1.25 |
| Modular Connection Size | Y31 |
| Toolholder Style | AQD..Y |
| Series | CoroMill QD |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 3900 |
| Maximum RPM | 3900 |
| Through Coolant | No |
| Complete Insert Compatibility1 | QD-NF-0239-020E-PM |
| Overall Height (mm) | 2.19 |
| Overall Height (Decimal Inch) | 0.0864 |
