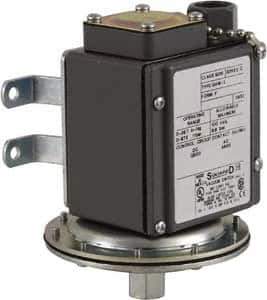

Square D - 4, 13 and 4X NEMA Rated, SPDT, 0.2 to 10 psi, Vacuum Switch Pressure and Level Switch - Adjustable Pressure, 120 VAC, 125 VDC, 240 VAC, 250 VDC, Screw Terminal
Item #: 49750722
Brand: Square D
Model #: 9016GAW1F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pressure Switch Type | Vacuum Switch |
| NEMA Rating | 4; 13; 4X |
| Maximum Pressure Setting | 10 psi |
| Minimum Pressure Setting | 0.2 psi |
| Differential Pressure Type | Adjustable |
| Maximum Differential Pressure (inHg) | 28.70 |
| Minimum Differential Pressure (inHg) | 0 |
| Voltage | 120 VAC; 125 VDC; 240 VAC; 250 VDC |
| Contact Form | SPDT |
| Terminal Type | Screw |
| Standards Met | CSA File LR25490; RoHS Compliant; UL 508; UL Listed File E12158 CCN NKPZ & CCN NTHT |
| Amperage | 0.22; 0.27; 3; 6 |
