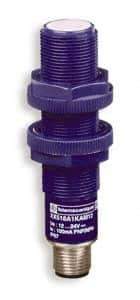

Telemecanique Sensors - NPN, PNP, 0.15m Detection, Cylinder, Ultrasonic Proximity Sensor - 4 Wires, IP67, 12 to 24 VDC, M18x1 Thread, 18mm Wide
Item #: 49916190
Brand: Telemecanique Sensors
Model #: XX518A1KAM12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Ultrasonic |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | NPN; PNP |
| Connector Type | 4-pin M12 Male |
| Number of Wires | 4 |
| Detection Distance (Meters) | 0.15 |
| Maximum Voltage | 12-24 VDC |
| Overall Width/Diameter (mm) | 18 |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 100 |
| Response Frequency (Hz) | 80 |
| Thread Size | M18x1 |
| Housing Material | ULTEM |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Standards Met | IEC 60068-2-2; IEC 60068-2-6; IEC 60529; IEC 60947-5-2; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; RoHS Compliant |
