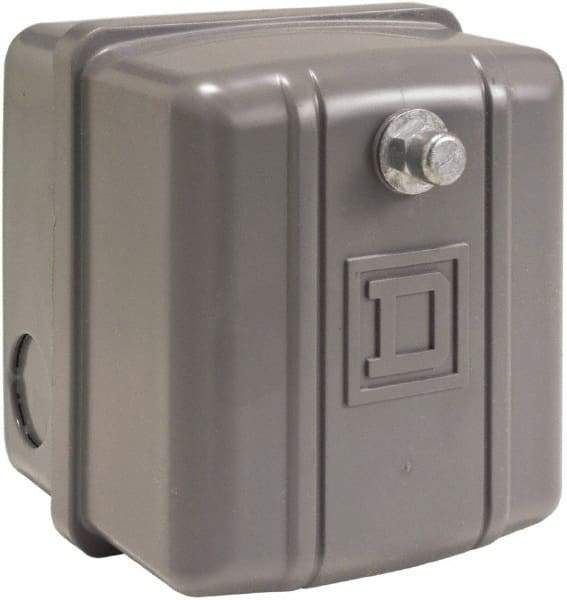

Square D - 1 NEMA Rated, DPST, 60 to 80 psi, Electromechanical, Snap Action Pressure and Level Switch - Adjustable Pressure, 460/575 VAC, 3/8 Inch Connector, Screw Terminal, For Use with Air Compressors, Power Circuits, Water Pumps
Item #: 49918386
Brand: Square D
Model #: 9013GHG3J25P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pressure Switch Type | Electromechanical; Snap Action |
| NEMA Rating | 1 |
| Maximum Pressure Setting | 80 psi |
| Minimum Pressure Setting | 60 psi |
| Differential Pressure Type | Adjustable |
| Maximum Differential Pressure (psig) | 40 |
| Minimum Differential Pressure (psig) | 20 |
| Voltage | 460/575 VAC |
| Contact Form | DPST |
| Connector Size (Decimal Inch) | 0.3750 |
| Connector Size (Inch) | 3/8 |
| Terminal Type | Screw |
| For Use With | Air Compressors; Power Circuits; Water Pumps |
| Includes | Pulsation Plug |
| Standards Met | ANSI/NSF Standard 61; CSA File No. LR25490 Class 3211 06; FDA 21CFR.2600; NEC Article 430-84; UL 508; UL File No. E12158 CCN NKPZ |
