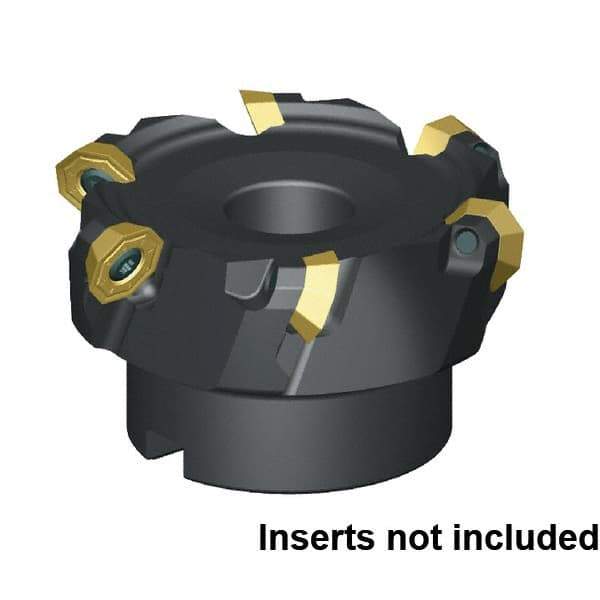

Kennametal - 4 Inserts, 1-1/2" Cut Diam, 1/2" Arbor Diam, 3.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 45° Lead Angle, 40mm High, OFPT06L5AFENGB Insert Compatibility, Through Coolant, Series KSOM
Item #: 49963440
Brand: Kennametal
Model #: 5359020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (mm) | 12.70 |
| Arbor Hole Diameter (Inch) | 1/2 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Lead Angle | 45 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5750 |
| Insert Compatibility | OFPT06L5AFENGB |
| Series | KSOM |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 36.58 |
| Hub Diameter (Decimal Inch) | 1.4400 |
| Maximum Body Diameter (Decimal Inch) | 1.7130 |
| Maximum RPM | 16710 |
| Toolholder Material | Steel |
