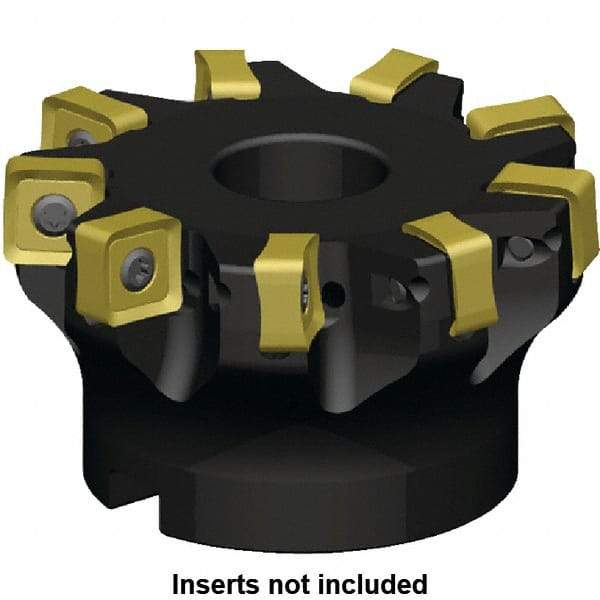

Kennametal - 9 Inserts, 125mm Cut Diam, 40mm Arbor Diam, 6mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 3° Lead Angle, 63mm High, SN_J120616EN__ Insert Compatibility, Series KSSM
Item #: 49963572
Brand: Kennametal
Model #: 5420116
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9220 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5800 |
| Lead Angle | 3 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | SN_J120616EN__ |
| Series | KSSM |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 9 |
| Hub Diameter (mm) | 89.00 |
| Hub Diameter (Decimal Inch) | 3.5040 |
| Maximum Body Diameter (Decimal Inch) | 4.7930 |
| Maximum RPM | 13100 |
| Toolholder Material | Steel |
