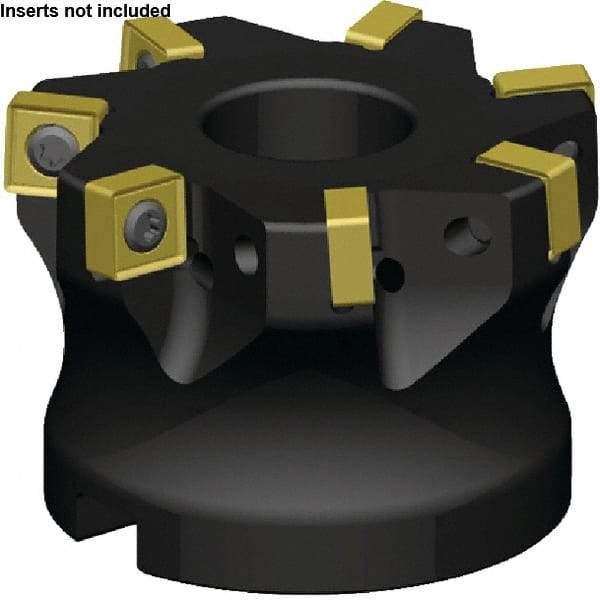

Kennametal - 11 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 9.16mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 2° Lead Angle, 50mm High, SN_J10T308EN__ Insert Compatibility, Series KSSM
Item #: 49963796
Brand: Kennametal
Model #: 5420250
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2600 |
| Lead Angle | 2 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9680 |
| Insert Compatibility | SN_J10T308EN__ |
| Series | KSSM |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 9.16 |
| Maximum Depth of Cut (Decimal Inch) | 0.3610 |
| Number of Cutter Inserts | 11 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 11 |
| Hub Diameter (mm) | 78.00 |
| Hub Diameter (Decimal Inch) | 3.0710 |
| Maximum Body Diameter (Decimal Inch) | 3.8530 |
| Maximum RPM | 21900 |
| Toolholder Material | Steel |
