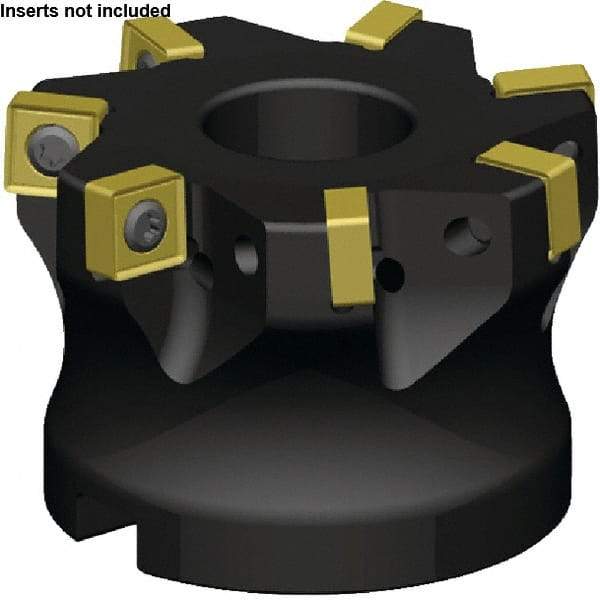

Kennametal - 7 Inserts, 3" Cut Diam, 1" Arbor Diam, 9.16mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 2° Lead Angle, 1-3/4" High, SN_J31252EN__ Insert Compatibility, Series KSSM
Item #: 49963861
Brand: Kennametal
Model #: 5420255
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 2 |
| Overall Height (mm) | 44.45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | SN_J31252EN__ |
| Series | KSSM |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 9.16 |
| Maximum Depth of Cut (Decimal Inch) | 0.3610 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 7 |
| Hub Diameter (mm) | 55.63 |
| Hub Diameter (Decimal Inch) | 2.1900 |
| Maximum Body Diameter (Decimal Inch) | 2.9180 |
| Maximum RPM | 25500 |
| Toolholder Material | Steel |
