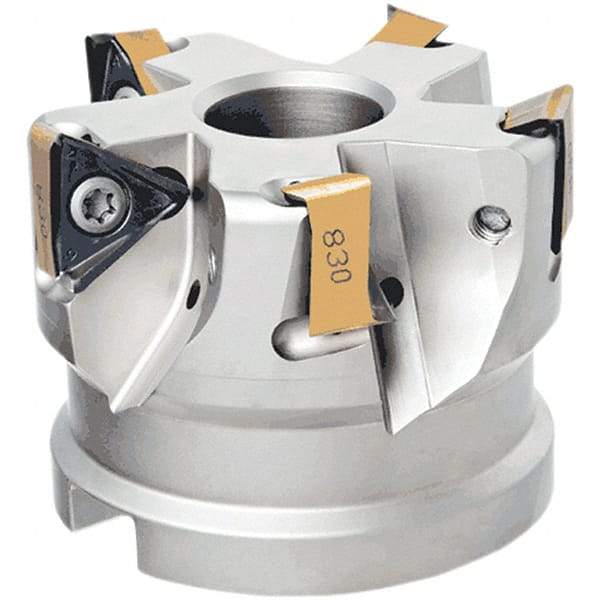

Iscar - 8 Inserts, 6" Cut Diam, 2" Arbor Diam, 17/32" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 2-1/2" High, H690 TNKX 160610 Insert Compatibility, Series Helido
Item #: 50067388
Brand: Iscar
Model #: 3106652
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | H690 TNKX 160610 |
| Series | Helido |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.5310 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | H690 F90AX |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 3.9400 |
| Keyway Width (Decimal Inch) | 0.7500 |
| Keyway Depth (Decimal Inch) | 0.4370 |
| Counterbore Diameter (Decimal Inch) | 2.8100 |
| Complete Insert Compatibility | H690 TNKX 160610PNTR |
