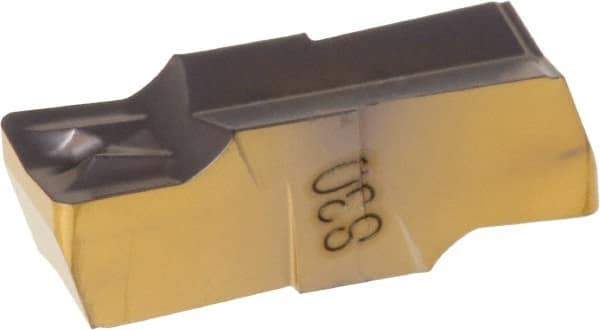

Iscar - 478055GIFI Grade IC830, 4.78mm Cutting Width Carbide Grooving Insert - 15.5mm Max Depth of Cut, Neutral, 0.55mm Corner Radius, TiN/TiAlN Finish
Item #: 50097047
Brand: Iscar
Model #: 6405509
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIFI |
| Insert Size | 478055 |
| Material | Carbide |
| Cutting Width (mm) | 4.78 |
| Cutting Width (Decimal Inch) | 0.1882 |
| Maximum Depth of Cut (mm) | 15.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6102 |
| Manufacturer's Grade | IC830 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1969 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Side Slotting; T-Slotting |
| Corner Radius (mm) | 0.55 |
| Corner Radius (Decimal Inch) | 0.0217 |
| Coating Process | PVD |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6181 |
| Series | Cut Grip |
| Manufacturers Catalog Number | GIFI 4.78-0.55 |
