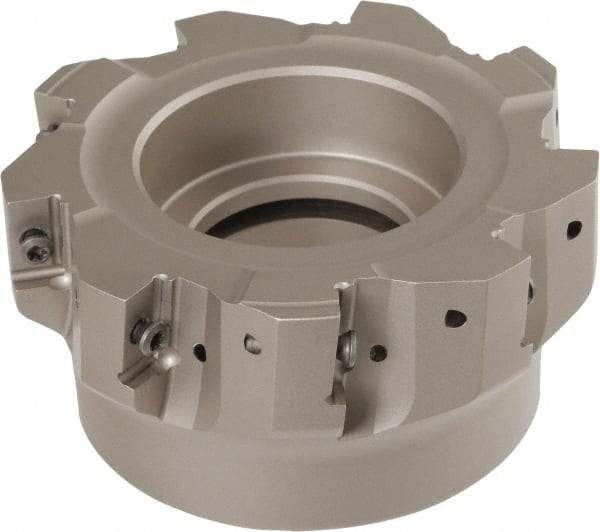

Iscar - 9 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 0.708" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 1-3/4" High, P290 AC.T 1806.. Insert Compatibility, Through Coolant, Series MillShred
Item #: 50099332
Brand: Iscar
Model #: 3110833
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | P290 AC.T 1806.. |
| Series | MillShred |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.7080 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | P290 FPW |
| Number of Flutes | 9 |
| Hub Diameter (Decimal Inch) | 2.1700 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Keyway Depth (Decimal Inch) | 0.3750 |
| Counterbore Diameter (Decimal Inch) | 2.0300 |
| Complete Insert Compatibility | P290 ACCT 1806PDR-HL; P290 ACCT 1806PDR-HL-P; P290 ACCT 1806PDR-TL; P290 ACKT 1806PDR-FW; P290 ACKT 1806PDR-FWE; P290 ACKT 1806PDR-FWE-P; P290 ACKT 1806PDR-FWR |
