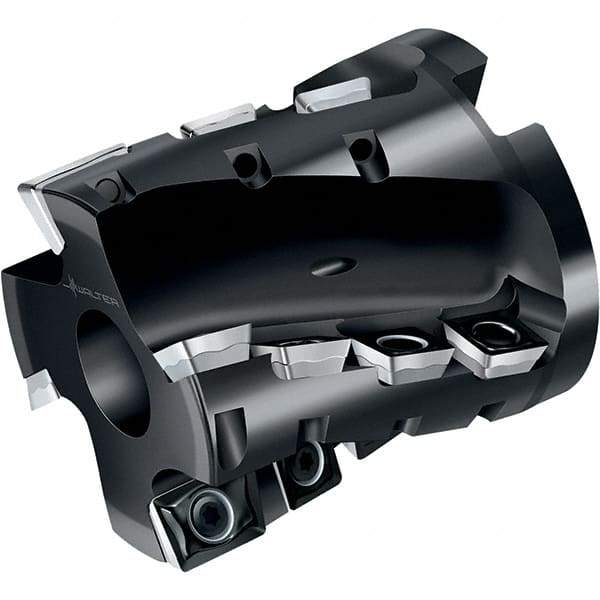

Walter - 2" Cut Diam, 3/4" Arbor Diam, 47mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 57.1mm High, LDM.14T308R & SDM.09T308 Insert Compatibility, Through Coolant, Series M4257
Item #: 50339100
Brand: Walter
Model #: 6903653
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 90 |
| Overall Height (mm) | 57.10 |
| Insert Compatibility | LDM.14T308R; SDM.09T308 |
| Series | M4257 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 47.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Cutter Style | M4257 |
| Number of Flutes | 2 |
| Cutting Rake Angle | 90 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 24700 |
| Cutting Edge Length (Inch) | 2.2480 |
| Cutting Edge Length (Decimal Inch) | 2.2480 |
| Toolholder Material | Steel |
