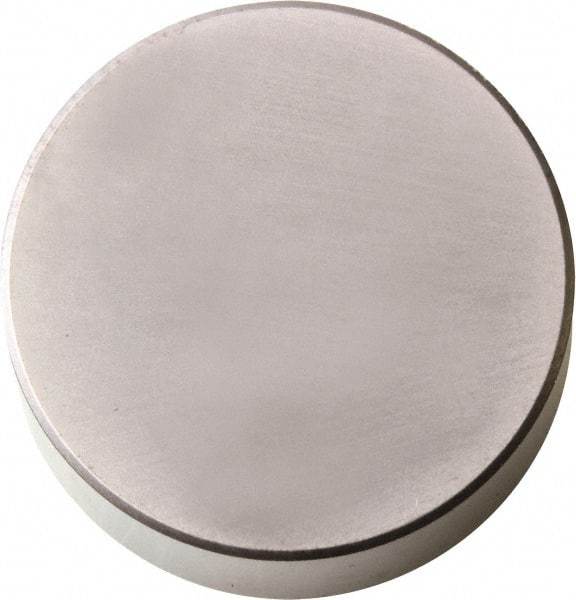

Kyocera - RNG33T008 Grade A65 Ceramic Turning Insert - Uncoated, Round, 3/8" Inscr Circle, 3/16" Thick
Item #: 50356021
Brand: Kyocera
Model #: 8807016
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RNG |
| Insert Size | 33T008 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | A65 |
| Coating | Uncoated |
| ISO Number | RNG090400T02025 |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | RNG33T00825 A65 |
| Primary Workpiece Material | K |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Round |
