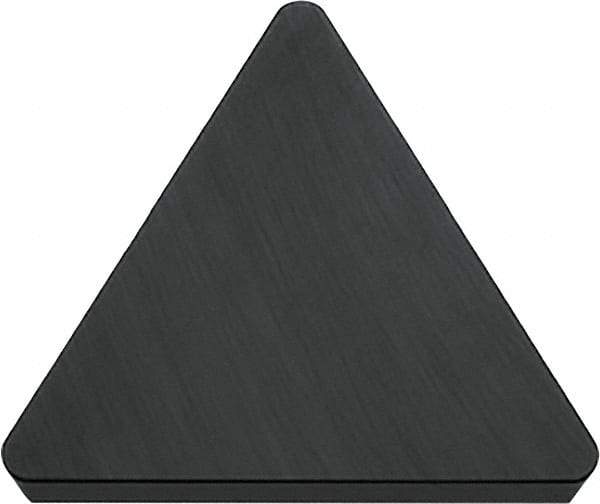

Kyocera - TPG320.5 Grade A65 Ceramic Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 0.008" Corner Radius
Item #: 50356047
Brand: Kyocera
Model #: 8807030
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | TPG |
| Insert Size | 320.5 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | A65 |
| Coating | Uncoated |
| ISO Number | TPG160302T00820 |
| Rake | Positive |
| Relief Angle | 11 |
| Manufacturers Catalog Number | TPG3205T00320 A65 |
| Primary Workpiece Material | K |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
