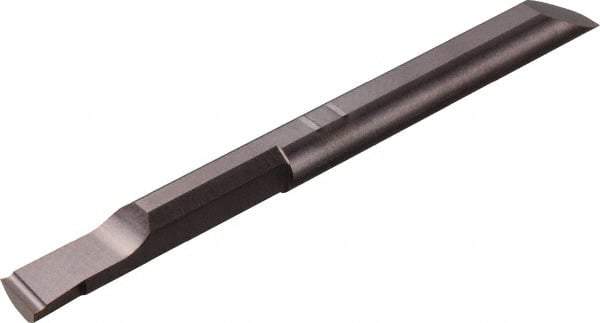

Kyocera - 2mm Min Bore Diam, 8mm Max Bore Depth, 2mm Shank Diam, Boring Bar - 0.00315" Corner Radius, Right Hand Cut, Solid Carbide, Uncoated
Item #: 50359397
Brand: Kyocera
Model #: 8842577
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Boring bars are used to enlarge or finish the inside diameter of a workpiece.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.0787 |
| Minimum Bore Diameter (mm) | 2.00 |
| Maximum Bore Depth (Decimal Inch) | 0.3150 |
| Maximum Bore Depth (mm) | 8.00 |
| Material | Solid Carbide |
| Material Grade | Micrograin |
| Boring Bar Type | Boring |
| Shank Diameter (Decimal Inch) | 0.0787 |
| Shank Diameter (mm) | 2.0000 |
| Overall Length (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 32.00 |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.003150 |
| Corner Radius (mm) | 0.08 |
| Bar End Angle | 5 |
| Manufacturer Grade | GW05 |
