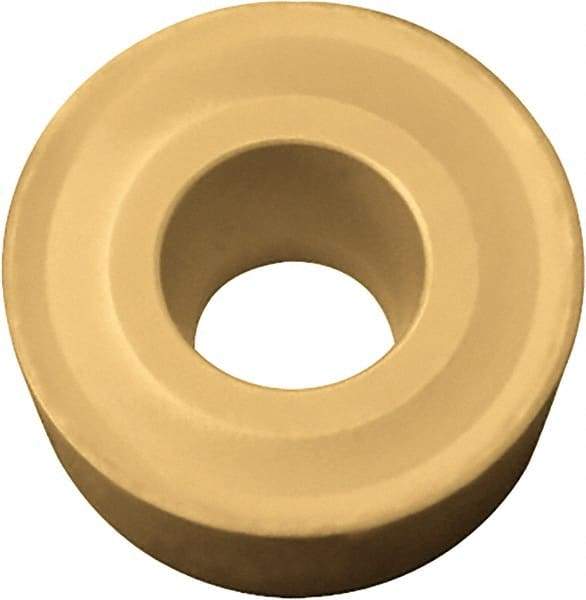

Kyocera - RCMX1204M0 Grade TN620 Cermet Turning Insert - Uncoated, Round, 12mm Inscr Circle, 3/16" Thick
Item #: 50372986
Brand: Kyocera
Model #: 8843163
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 1204M0 |
| Material | Cermet |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | TN620 |
| Coating | Uncoated |
| Material Grade | Micrograin |
| Hole Diameter (mm) | 4.19 |
| Hole Diameter (Decimal Inch) | 0.1650 |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | RCMX1204M0 TN620 |
| Primary Workpiece Material | P |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Round |
