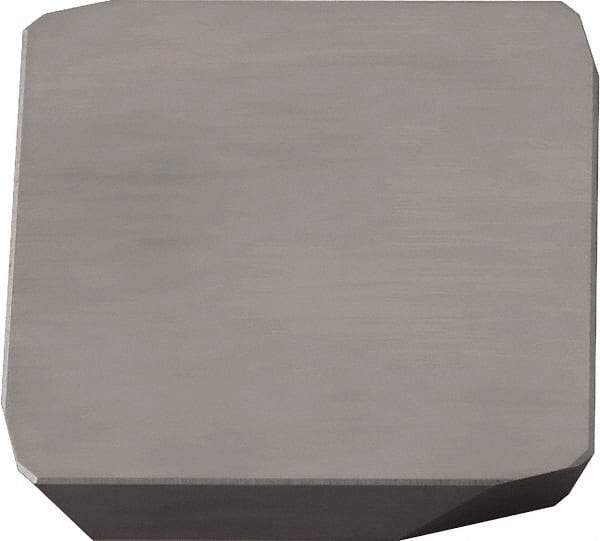

Kyocera - SPCN63 Grade TN100M Cermet Milling Insert - TiCN/NbC Finish, 3/16" Thick, 3/4" Inscribed Circle
Item #: 50374503
Brand: Kyocera
Model #: 8813777
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | SPCN |
| Insert Size | 63 |
| Material | Cermet |
| Manufacturer's Grade | TN100M |
| Coating | TiCN/NbC |
| Width (Inch) | 3/4 |
| Width (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Relief Angle | 20.000 |
| Shape | Square |
| Insert Hand | Right Hand |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | 63EETR1 |
