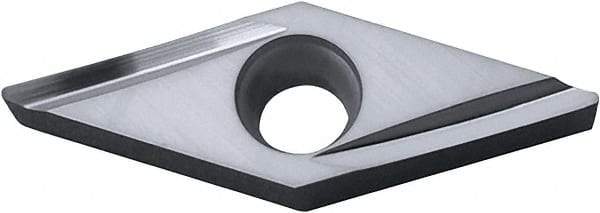

Kyocera - VBGT220.2 Y Grade TN60 Cermet Turning Insert - Uncoated, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 0.004" Corner Radius
Item #: 50379171
Brand: Kyocera
Model #: 8808024
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VBGT |
| Insert Size | 220.2 |
| Material | Cermet |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | TN60 |
| Coating | Uncoated |
| Chip Breaker | Y |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | VBGT110301R-Y |
| Rake | Positive |
| Rake Angle | 14 |
| Relief Angle | 5 |
| Manufacturers Catalog Number | VBGT2202RY TN60 |
| Primary Workpiece Material | P |
| Included Angle | 35 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
