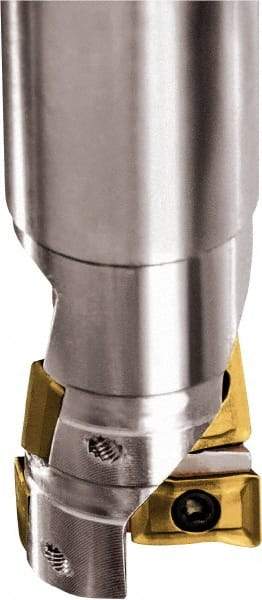

Kyocera - 21mm Cut Diam, 6mm Max Depth of Cut, 20mm Shank Diam, 130mm OAL, Indexable Square Shoulder End Mill - GOMT 100308ER-D, JOMT 100308ER-D Inserts, Cylindrical Shank, 90° Lead Angle
Item #: 50387844
Brand: Kyocera
Model #: 8812567
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 21.00 |
| Cutting Diameter (Decimal Inch) | 0.8268 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 130.00 |
| Overall Length/Projection (Decimal Inch) | 5.1181 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.236220 |
| Number of Cutter Inserts | 4 |
| End Mill Type | End Mill |
| Head Length (mm) | 22.00 |
| Head Length (Decimal Inch) | 0.8661 |
| Insert Compatibility | GOMT 100308ER-D; JOMT 100308ER-D |
| Shank Length (Decimal Inch) | 3.7402 |
| Shank Length (mm) | 95.00 |
