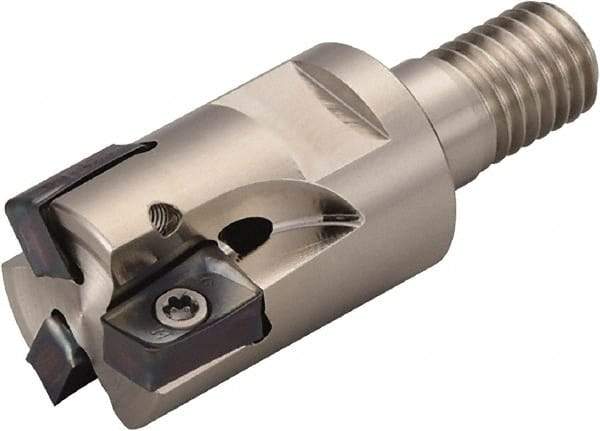

Kyocera - 25mm Cut Diam, 15mm Max Depth of Cut, 57mm OAL, Indexable Square Shoulder End Mill - LOMU 1505..ER-GH, LOMU 1505..ER-GM, LOMU 1505..ER-SM Inserts, M12 Modular Connection, 90° Lead Angle, Through Coolant, Series M-Four
Item #: 50388123
Brand: Kyocera
Model #: 8837960
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Overall Length/Projection (mm) | 57.00 |
| Overall Length/Projection (Decimal Inch) | 2.2441 |
| Lead Angle | 90 |
| Series | M-Four |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.590551 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEW |
| Number of Flutes | 2 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Weldon Flat | No |
| Insert Compatibility | LOMU 1505..ER-GH; LOMU 1505..ER-GM; LOMU 1505..ER-SM |
| Maximum RPM | 35000 |
