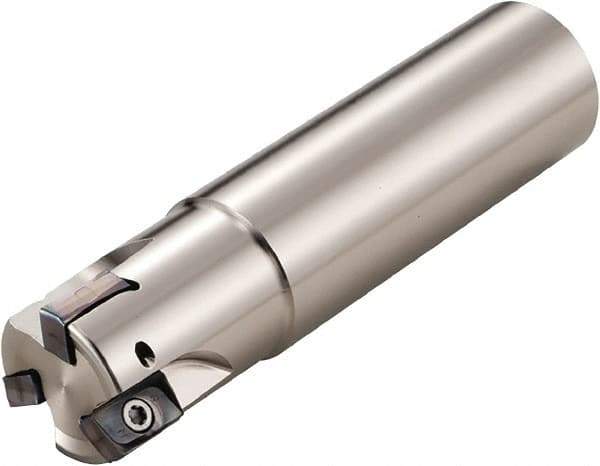

Kyocera - 1-1/4" Cut Diam, 0.59" Max Depth of Cut, 1-1/4" Shank Diam, 4" OAL, Indexable Square Shoulder End Mill - LOMU 1505..ER-GH, LOMU 1505..ER-GM, LOMU 1505..ER-SM Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series M-Four
Item #: 50388248
Brand: Kyocera
Model #: 8835749
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 90 |
| Series | M-Four |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEW |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.6630 |
| Weldon Flat | Yes |
| Insert Compatibility | LOMU 1505..ER-GH; LOMU 1505..ER-GM; LOMU 1505..ER-SM |
| Shank Length (Decimal Inch) | 2.3370 |
| Maximum RPM | 30100 |
