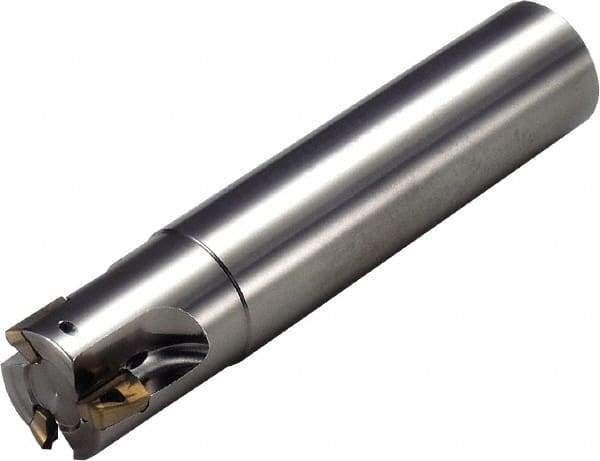

Kyocera - 1-1/4" Cut Diam, 0.618" Max Depth of Cut, 1-1/4" Shank Diam, 4" OAL, Indexable Square Shoulder End Mill - BDMT 1704 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 50388792
Brand: Kyocera
Model #: 8604758
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6180 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEC |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.5750 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 1704 |
| Shank Length (Decimal Inch) | 2.4250 |
| Maximum RPM | 30000 |
