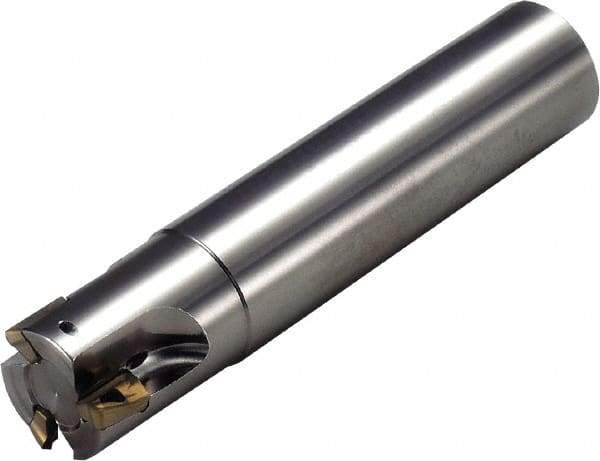

Kyocera - 1-1/4" Cut Diam, 0.394" Max Depth of Cut, 1" Shank Diam, 3-3/4" OAL, Indexable Square Shoulder End Mill - BDMT 11T3 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 50388800
Brand: Kyocera
Model #: 8604755
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 3.7500 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEC |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.2600 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 11T3 |
| Shank Length (Decimal Inch) | 2.4900 |
| Maximum RPM | 33900 |
