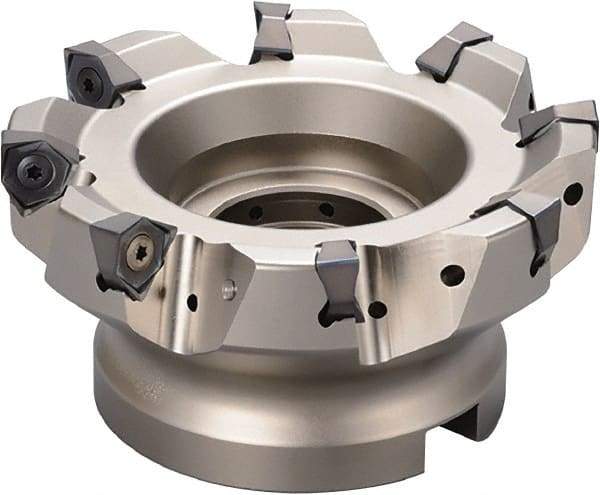

Kyocera - 7 Inserts, 80mm Cut Diam, 13mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 50mm High, WNMU 0806 Insert Compatibility, Through Coolant, Series M-Six
Item #: 50389402
Brand: Kyocera
Model #: 8835704
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 13.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.5118 |
| Lead Angle | 0 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | WNMU 0806 |
| Series | M-Six |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | MFWN |
| Number of Flutes | 7 |
| Cutting Rake Angle | -9 |
| Rake | Negative |
| Keyway Width (mm) | 9.50 |
| Keyway Width (Decimal Inch) | 0.3740 |
| Keyway Depth (Decimal Inch) | 0.236220 |
| Keyway Depth (mm) | 6 |
| Pitch | Extra Fine |
| ISO Number | MFWN90080R-7T |
| Complete Insert Compatibility | WNEU 080608EN-GL; WNMU 080608EN-GH; WNMU 080608EN-GM; WNMU 080608EN-SM |
