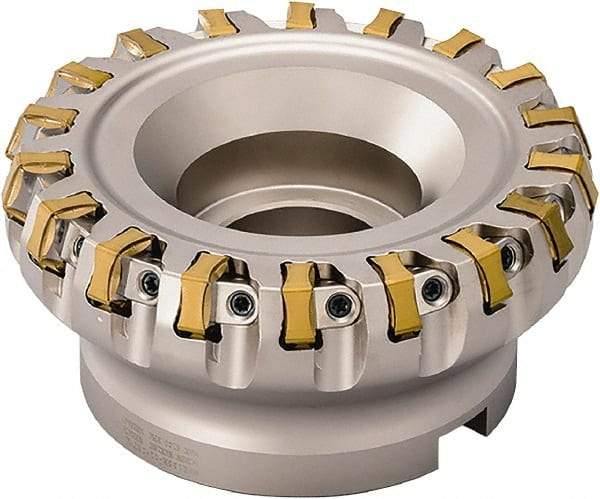

Kyocera - 20 Inserts, 200mm Cut Diam, 47.63mm Arbor Diam, 6mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 70° Lead Angle, 63mm High, PNEA 1106, PNEG 1106 & PNMG 1106 Insert Compatibility
Item #: 50389568
Brand: Kyocera
Model #: 8842553
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 47.63 |
| Arbor Hole Diameter (Decimal Inch) | 1.8752 |
| Lead Angle | 70 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | PNEA 1106; PNEG 1106; PNMG 1106 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Wedge |
| Cutter Style | MFK |
| Number of Flutes | 20 |
| Cutting Rake Angle | -5 |
| Rake | Negative |
| Hub Diameter (mm) | 142.00 |
| Hub Diameter (Decimal Inch) | 5.5906 |
| Keyway Width (mm) | 25.40 |
| Keyway Width (Decimal Inch) | 1.0000 |
| Keyway Depth (Decimal Inch) | 0.551181 |
| Keyway Depth (mm) | 14 |
| Pitch | Fine |
| ISO Number | MFK200R-11-20T |
| Complete Insert Compatibility | PNEA 1106XNTN-T01020; PNEG 1106XNEN-GL; PNEG 1106XNER-W; PNEG 1106XNTR-T00515; PNMG 1106XNEN-GH; PNMG 1106XNEN-GM |
