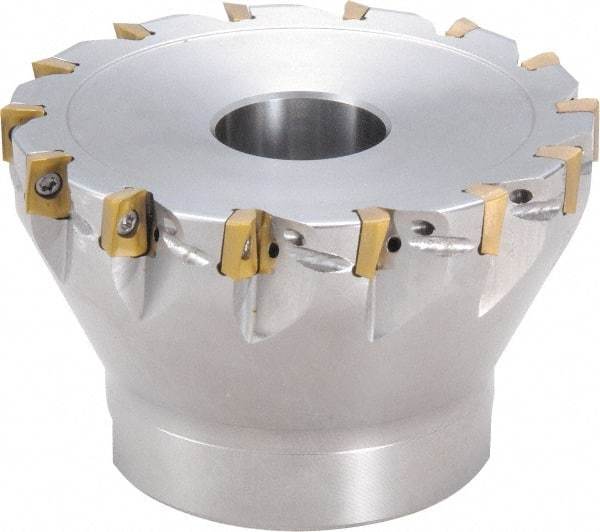

Kyocera - 12 Inserts, 2" Cut Diam, 0.417" Arbor Diam, 0.236" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 1.575" High, BDMT 0703 Insert Compatibility, Through Coolant
Item #: 50389758
Brand: Kyocera
Model #: 8821902
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.4170 |
| Lead Angle | 0 |
| Overall Height (Decimal Inch) | 1.5750 |
| Insert Compatibility | BDMT 0703 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | MECX |
| Number of Flutes | 12 |
| Cutting Rake Angle | -8 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 1.5750 |
| Keyway Width (Decimal Inch) | 0.3130 |
| Keyway Depth (Decimal Inch) | 0.1870 |
| Maximum RPM | 27700 |
| Pitch | Extra Fine |
| Counterbore Diameter (Decimal Inch) | 0.6460 |
| Complete Insert Compatibility | BDMT 070302ER-JS; BDMT 070302ER-JT; BDMT 070304ER-JS; BDMT 070304ER-JT; BDMT 070308ER-JS; BDMT 070308ER-JT |
