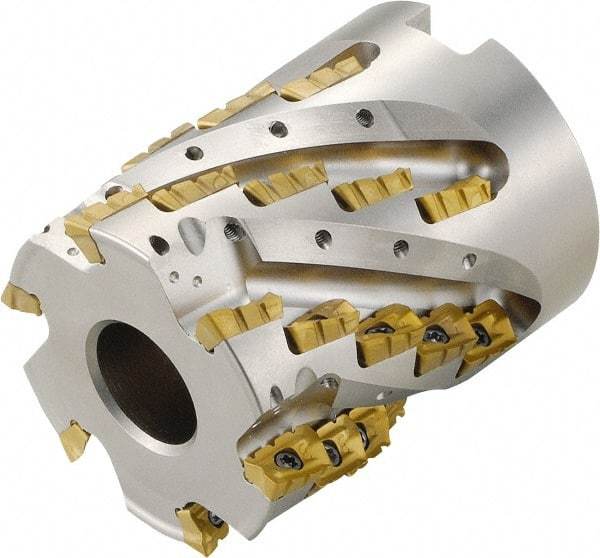

Kyocera - 8 Inserts, 50mm Cut Diam, 11mm Arbor Diam, 30mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 52mm High, BDMT 1704 Insert Compatibility
Item #: 50389857
Brand: Kyocera
Model #: 8825285
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 11.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.4331 |
| Lead Angle | 90 |
| Overall Height (mm) | 52.00 |
| Overall Height (Decimal Inch) | 2.0472 |
| Insert Compatibility | BDMT 1704 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 30.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | MECH |
| Number of Flutes | 4 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Keyway Depth (Decimal Inch) | 0.248031 |
| Keyway Depth (mm) | 6.30 |
| ISO Number | MECH050R-17-2-4T-M |
| Complete Insert Compatibility | BDMT 170408ER-N3; BDMT 170408ER-N4 |
