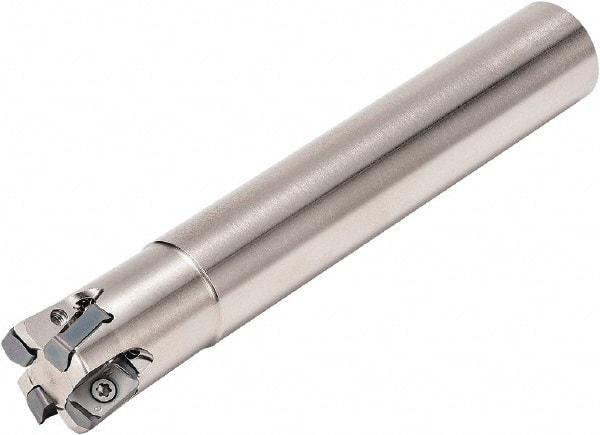

Kyocera - 16mm Cut Diam, 1mm Max Depth, 16mm Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, LOGU 030310ER-GM Insert, MFH Toolholder, Through Coolant
Item #: 50390616
Brand: Kyocera
Model #: 8844024
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.629921 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.629921 |
| Number of Cutter Inserts | 2 |
| Insert Style | LOGU 030310ER-GM |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Maximum RPM | 18800 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Head Length (mm) | 30.00 |
| Manufacturers Catalog Number | MFH 16-S16-03-2T |
