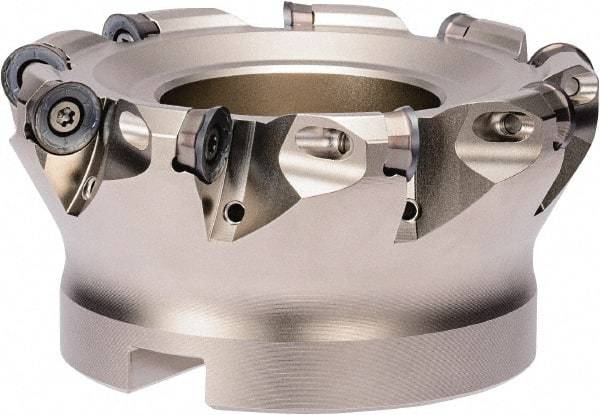

Kyocera - 125mm Cut Diam, 8mm Max Depth, 16.4mm Arbor Hole, 8 Inserts, RPGT 16, RPMT 16 Insert Style, Indexable Copy Face Mill - MRX Cutter Style, 9,000 Max RPM, 63mm High, Through Coolant, Series RAD-6
Item #: 50392265
Brand: Kyocera
Model #: 8839203
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 16.40 |
| Arbor Hole Diameter (Decimal Inch) | 0.6457 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Series | RAD-6 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RPGT 16; RPMT 16 |
| Cutter Style | MRX |
| Through Coolant | Yes |
| Maximum RPM | 9000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.5039 |
| Hub Diameter (mm) | 89.00 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6299 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 2.1654 |
| Counterbore Diameter (mm) | 55.00 |
| Complete Insert Compatibility | RPGT 1605M0ER-GM; RPGT 1605M0ER-SM; RPMT 1605M0EN-GH; RPMT 1605M0ER-GM |
| ISO Number | MRX125R-16-8T-M |
