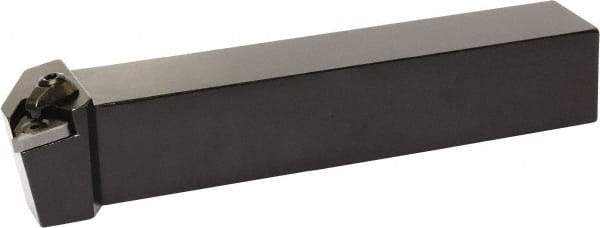

Kyocera - External Thread, Right Hand Cut, 20mm Shank Width x 20mm Shank Height Indexable Threading Toolholder - 125mm OAL, Various Insert Compatibility, KTN Toolholder
Item #: 50396605
Brand: Kyocera
Model #: 8801679
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Insert Compatibility | 16ER/L 050ISO; 16ER/L 075ISO; 16ER/L 08UN-TF; 16ER/L 100ISO; 16ER/L 100ISO-M02; 16ER/L 100ISO-TF; 16ER/L 100ISO-TS; 16ER/L 10UN-TF; 16ER/L 11.5NPT; 16ER/L 11BSPT; 16ER/L 11BSPT-TF; 16ER/L 11BSPT-TS; 16ER/L 11W; 16ER/L 11W-TF; 16ER/L 11W-TS; 16ER/L 125ISO |
| Toolholder Style | KTN |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Shank Length (Decimal Inch) | 3.9370 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3752 |
| Shank Length (mm) | 100 |
