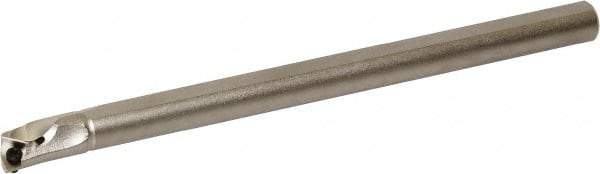

Kyocera - 0.77" Min Bore Diam, 8" OAL, 5/8" Shank Diam, S/A-SWUB(P)-AE Indexable Boring Bar - 1.181" Max Bore Depth, WPGT 32.., WPGW 32.., WPMT 32.., WPMW 32.. Insert, Screw Holding Method
Item #: 50414804
Brand: Kyocera
Model #: 8826559
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S/A-SWUB(P)-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (Decimal Inch) | 0.7700 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.1810 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | WPGT 32..; WPGW 32..; WPMT 32..; WPMW 32.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.3540 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -3.50 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Complete Insert Compatibility | WPGT 321MR/L-Y; WPGT 321R/L-Y; WPGT 322MR/L-Y; WPGT 322R/L-Y; WPGW 321; WPGW 322; WPMT 321GP; WPMT 321HQ; WPMT 322HQ; WPMW 32.. |
| Toolholder Material | Steel |
