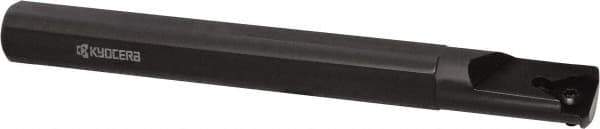

Kyocera - Internal Thread, Right Hand Cut, 20mm Shank Width x 18mm Shank Height Indexable Threading Toolholder - 180mm OAL, Various Insert Compatibility, SIN Toolholder
Item #: 50419019
Brand: Kyocera
Model #: 8802468
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 18.00 |
| Shank Height (Decimal Inch) | 0.7087 |
| Overall Length (Decimal Inch) | 7.0866 |
| Overall Length (mm) | 180.00 |
| Insert Compatibility | 16IR/L 08UN-TF; 16IR/L 100ISO; 16IR/L 100ISO-TF; 16IR/L 100ISO-TS; 16IR/L 10UN-TF; 16IR/L 11.5NPT; 16IR/L 11BSPT; 16IR/L 11BSPT-TF; 16IR/L 11BSPT-TS; 16IR/L 11W; 16IR/L 11W-TF; 16IR/L 11W-TS; 16IR/L 125ISO; 16IR/L 125ISO-TF; 16IR/L 12UN; 16IR/L 12UN-TF; 1 |
| Toolholder Style | SIN |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 12.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Shank Length (Decimal Inch) | 5.5118 |
| Minimum Bore Diameter (Decimal Inch) | 0.9449 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3752 |
| Shank Length (mm) | 140 |
| Minimum Bore Diameter (mm) | 24 |
