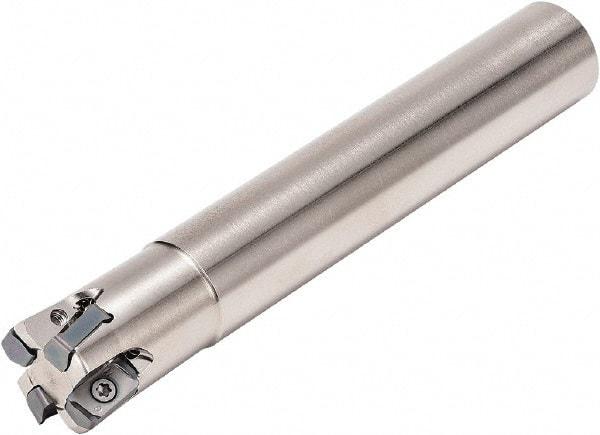

Kyocera - 20mm Cut Diam, 1mm Max Depth, 20mm Shank Diam, Weldon Shank Indexable High-Feed End Mill - Screw Holding Method, LOGU 030310ER-GM Insert, MFH Toolholder, Through Coolant
Item #: 50422096
Brand: Kyocera
Model #: 8844039
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.787402 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.787402 |
| Number of Cutter Inserts | 4 |
| Insert Style | LOGU 030310ER-GM |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Maximum RPM | 15700 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 101.00 |
| Overall Length (Decimal Inch) | 3.9764 |
| Head Length (mm) | 50.00 |
| Manufacturers Catalog Number | MFH 20-W20-03-4T |
