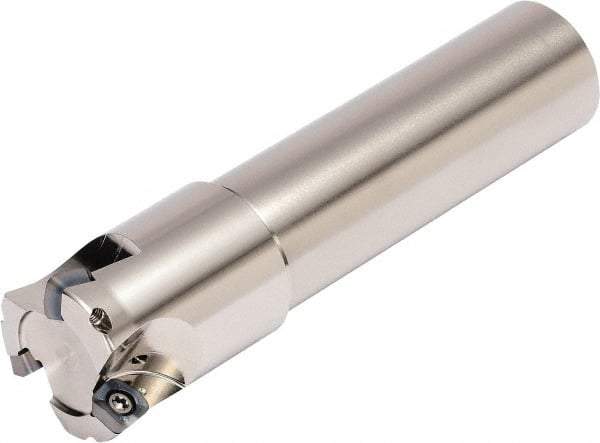

Kyocera - 40mm Cut Diam, 1.5mm Max Depth, 32mm Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, SOMT 100420ER-.. Insert, MFH Toolholder, Through Coolant
Item #: 50422203
Brand: Kyocera
Model #: 8839079
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.574803 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.259843 |
| Number of Cutter Inserts | 4 |
| Insert Style | SOMT 100420ER-.. |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Maximum RPM | 11500 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Head Length (mm) | 50.00 |
| Manufacturers Catalog Number | MFH 40-S32-10-4T-250 |
