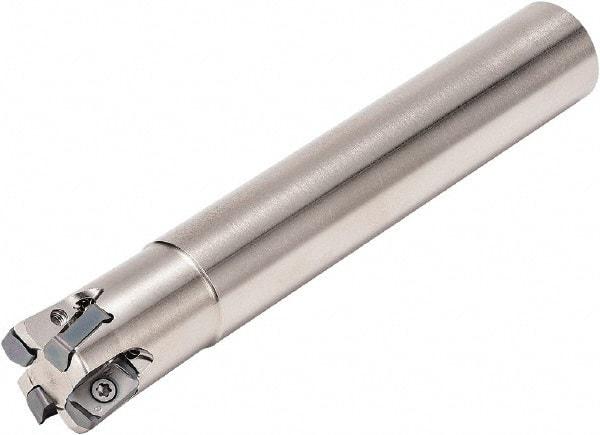

Kyocera - 32mm Cut Diam, 1mm Max Depth, 32mm Shank Diam, Weldon Shank Indexable High-Feed End Mill - Screw Holding Method, LOGU 030310ER-GM Insert, MFH Toolholder, Through Coolant
Item #: 50422286
Brand: Kyocera
Model #: 8844043
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.259843 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.259843 |
| Number of Cutter Inserts | 6 |
| Insert Style | LOGU 030310ER-GM |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | End Mill |
| Number of Flutes | 6 |
| Maximum RPM | 11400 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 131.00 |
| Overall Length (Decimal Inch) | 5.1575 |
| Head Length (mm) | 70.00 |
| Manufacturers Catalog Number | MFH 32-W32-03-6T |
